Overview

Note: This document has not been checked by a linguist, grammatical errors are expected.

ExplainerAPI - Javascript library for
product and science explanation

Explaining has always been challenging. Using text, sound, drawing is a good start. The transition from drawing on school boards to animation is a prominent step, wonderfully done by Manim (opens new window). Manim is based on Python so we (Javascript developers) don't have something easy like Manim.

This API will try to provide the simplicity that Manim has.

Explainer Primary Goals

• No need installation we can use CDN (but NMP install will be available)
  Todo: Create NPM stable package
  Todo: Create CDN link

• One line of code for ( but you can access three.js lib ):

  • Object creation
  • Object animation

• No additional code for (but you can programmatically control player):

  • Start Animation
  • Pause Animation
  • Chain Animation
  • Player creation

• No programming (but you can write the code if you like )

  • Copy/paste code from provided examples and change params
  • Use autocomplete to type param names

• No waiting

  • no application building, a new code will be auto inserted
  • After save application will run in a second

Product example in 100 lines of code, using explainerAPI

Todo: Create product explainer example in separate page

Science example in 100 lines of code, using explainerAPI

Todo: Move example in separate page

// Explainer APi
    const mw = await createMW ()
    mw.add.axis.setOrigin ( Origin.CENTER )

    // Axis X Options
    const axisOptX = {
        from: -5, to: 5,    period: 1,      periodSize: 8,
        color: '#888888',   thickness: 2,   fontSize: 4
    }
	mw.add.axis.addXAxis ( axisOptX )

    // Axis Y Options
    const axisOptY = {
        from: -5, to: 5,    period: 1,      periodSize: 8,
        color: '#448888',   thickness: 2,   fontSize: 4
    }
    mw.add.axis.addYAxis ( axisOptY )
	mw.add.axis.create ()

    //Plane
    const plane = mw.add.plane ( 10, 0x000000, 0x99FFFF, [ 4, 5, 1 ] )

    //Cube
    const cube = mw.add.cube ( 7, 0x00FF00, 0xffd144, [ -4, 5, 4 ] )
    cube.paramMaterial.roughness = 0.8

    //Sphere
    const sphere = mw.add.sphere ( 8, 0x888888, 0x00FFFF, [ -4, -4, 8 ] )
    sphere.heightSegments = 64; sphere.widthSegments = 64
    sphere.paramMaterial.emissiveIntensity = 0.1

    // Text
    const text3D = mw.add.text ( 'Explainer', 4,  0x888888, 0x00FFFF, [ 4, -4.5, 0 ] )

    //Function
    const pointsLine: Vector3[] = []
    const pointsSin2: Vector3[] = []

    function getSinPoints ( size: number, count: number, from: number, to: number ) {

        const pointsSin: Vector3[]  = []
        const range                 = to - from;
        const step                  = range/count
        let current                 = from

        for (let i = 1; i < count; i++) {

            current     += step
            const rad   = size * current * 10 * ( Math.PI / 180 ) - size
            const v     = new Vector3 ( current, 2 * Math.sin ( rad ), 0  )
            const v1    = new Vector3 ( v.x, 2.2 * v.y, -50 )

            pointsSin.push  ( v );  pointsLine.push ( v )
            pointsLine.push ( v1 ); pointsSin2.push ( v1 )
        }
        return pointsSin
    }
    const sinPoints = getSinPoints ( Math.PI, 80, -4.5, 4.55 )
    const curveSin  = mw.add.curve ( 'V3', sinPoints,   2,  0x00FF00, 0xffd144, )
    const curveSin2 = mw.add.curve ( 'V3', pointsSin2,  4,  0x008888, 0x000000, )

    //Line
    const line      = mw.add.line ( 'V3', pointsLine,   2,  0x00FF00, 0xffd144, )

    // Insert All
    mw.add.insert ()

    // Animate
    let a1 = mw.fade      ( 'xAxis',        2, 0, mw.xGroup,        { x: -10, y: 0, z: 0 }, { x: 0, y: 0, z: 0 },   { from: 0, to: 1 } )
    let a2 = mw.fadeAfter ( 'YAxis',    a1, 1, 0, mw.yGroup,        { x: 0, y: -10, z: 0 }, { x: 0, y: 0, z: 0 },   { from: 0, to: 1 } )
    let a3 = mw.fadeAfter ( 'Plane',    a2, 2, 0, plane.plane,      { x: 6, y: 6, z: 0 },   { x: 4, y: 5, z: 1 },   { from: 0, to: 1 } )
    let a4 = mw.fadeAfter ( 'Text',     a2, 1, 0, text3D.textMesh,  { x: 6, y: -6, z: 0 },  { x: 4, y: -4.5, z: 0 },{ from: 0, to: 1 } )
    let a5 = mw.fadeAfter ( 'Sphere',   a4, 1, 0, sphere.sphereMesh,{ x: -6, y: -6, z: 0 }, { x: -4, y: -4, z: 8 }, { from: 0, to: 1 } )
    let a6 = mw.fadeAfter ( 'Cube',     a4, 1, 0, cube.cube,        { x: -6, y: 6, z: 0 },  { x: -4, y: 5, z: 4 },  { from: 0, to: 1 } )
    let a7 = mw.fadeAfter ( 'Curve',    a6, 2, 0, curveSin.curve,   { x: 0, y: 0, z: 0 },   { x: 0, y: 0, z: 0 },   { from: 0, to: 1 } )
    let a8 = mw.fadeAfter ( 'Curve',    a7, 1, 0, curveSin2.curve,  { x: 0, y: 0, z: 0 },   { x: 0, y: 0, z: 0 },   { from: 0, to: 1 } )
    let a9 = mw.fadeAfter ( 'Lines',    a8, 2, 0, line.line,        { x: 0, y: 0, z: 0 },   { x: 0, y: 0, z: 0 },   { from: 0, to: 1 } )

    mw.animateManager.updatePlayer ( )

    mw.stage.render ( )

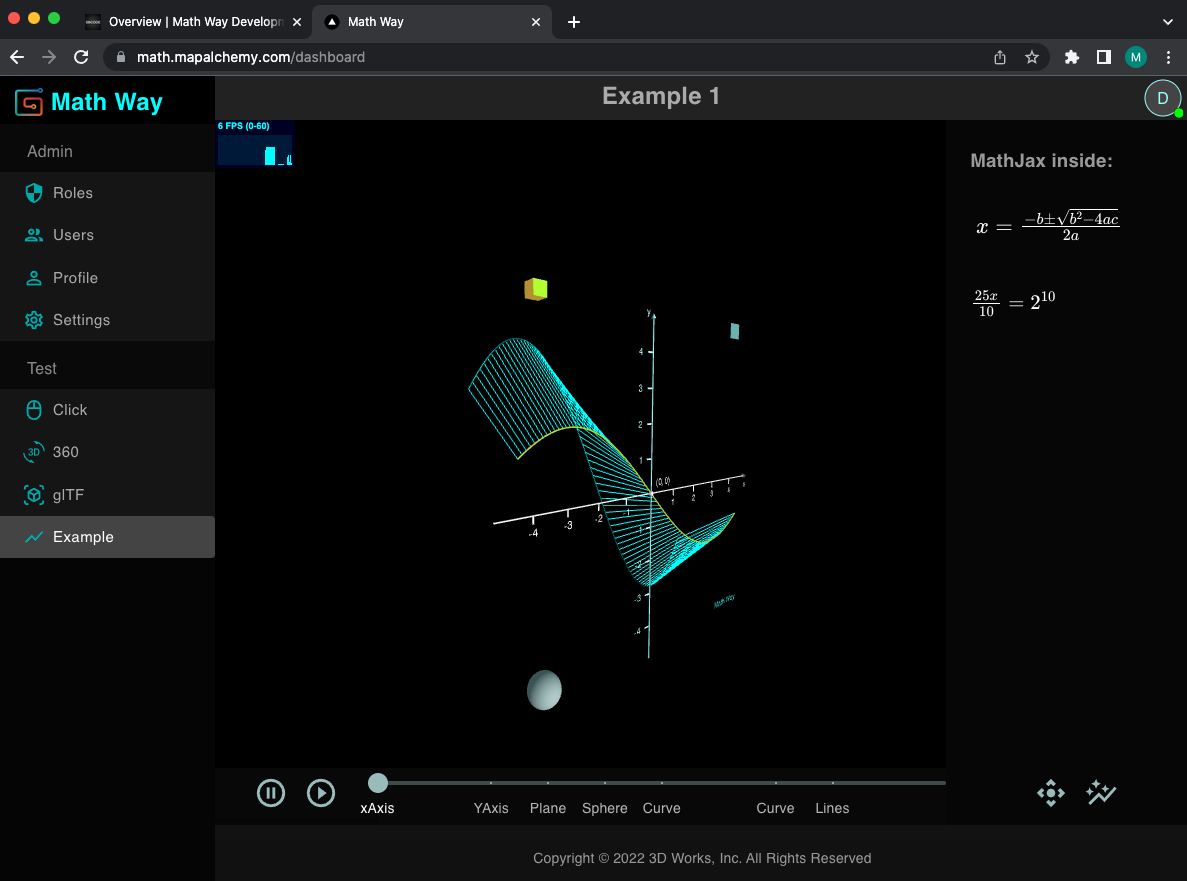

Embedded in real-world modern Next.js project:

Live link: https://mathdoc.mapalchemy.com/ (opens new window)

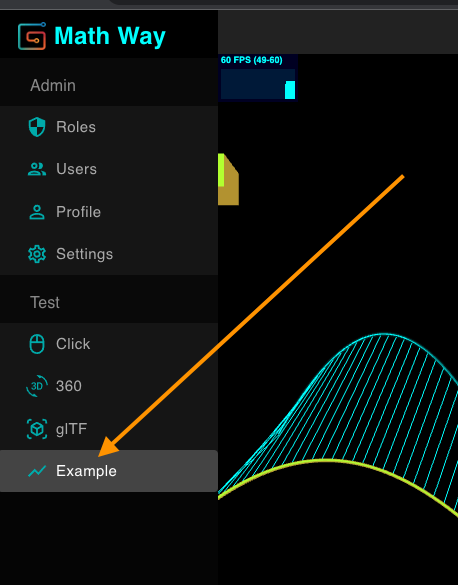

Click on example:

If you like to avoid registration:
Username:
mathway@google.com
Password:
zxcvbn42
